10,000 lb Capacity Commercial Grade BasePlate Lift

Name: 10,000 lb Capacity Commercial Grade BasePlate Lift
Brand: GearGridz
SKU: SKU_1779124038460_78
Price: 1162.02 USD
Availability: InStock

$1,162.02 USD

Sale Sold out

Shipping calculated at checkout.

The Atlas® BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas® BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop.

10,000 lb. Capacity
Commercial Grade
Baseplate, Open-Top Style Lift
Overall Height: 111 7/8″ (9′ 3 7/8″)

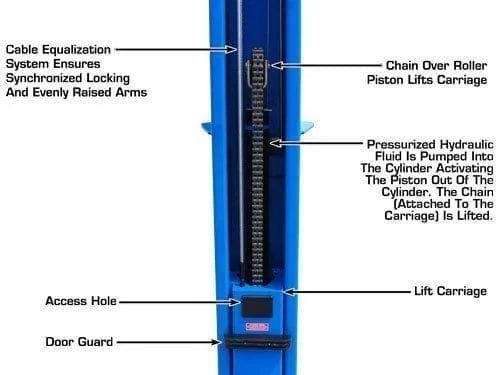

Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously
Super-Symmetric Arms
Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
Welded Support Gussets Increase Column Strength.
Automatic Arm Restraints
Powder Coat Finish
Free 12 Piece Truck Adapter Set
Shipping Weight: 1,640 LBS.
5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

Atlas® ATTD-BP10000X Specifications
Capacity	10,000 LB.

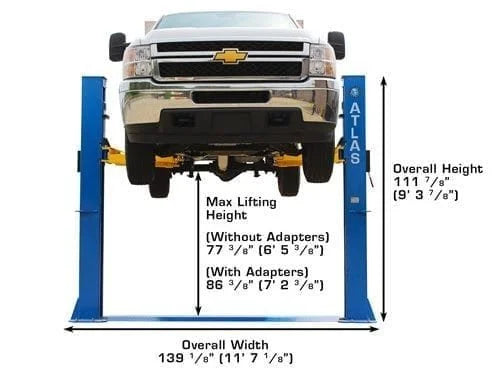

Overall Height	111 7/8″ (9’ 3 7/8″)
Overall Floor Width	139 1/8″ (11’ 7 1/8″)

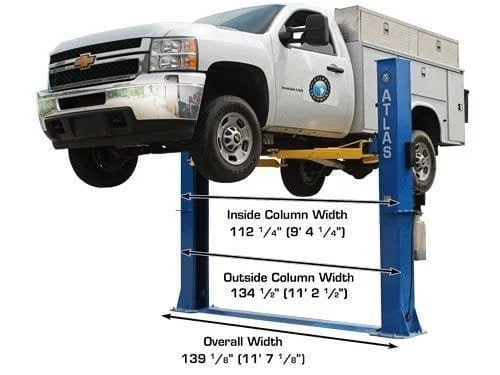

Outside Column to Outside Column	134 1/2″ (11’ 2 1/2″)

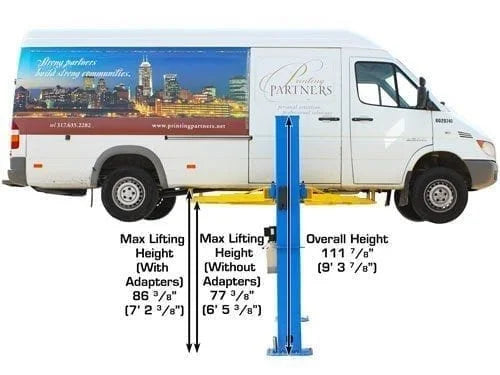

Maximum Lift Height (Without Adapters)	77 3/8″
Maximum Lift Height (With Adapters)	86 3/8″
Minimum Arm Height	4″

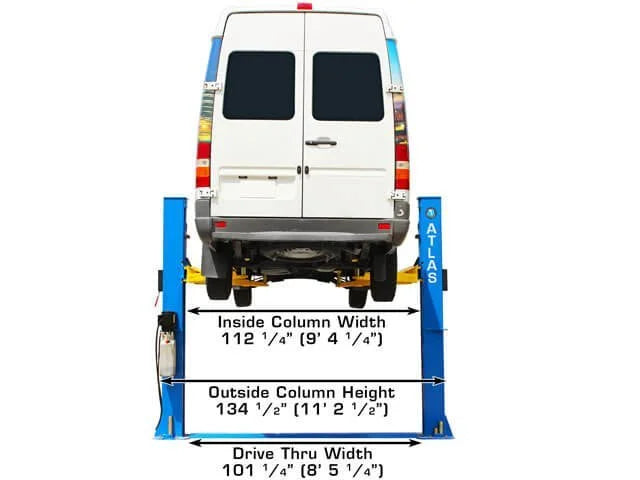

Inside Column	112 1/4” (9’ 4 1/4”)
Drive Thru	101 1/4” (8’ 5 1/4”)
Column Size	9 1/2″ x 11″
Column Thickness of Steel	6mm
Base Of Lift	17 1/2″ x 21 1/2″
Motor/Electrical Requirement	220 volt single (1) phase. A 30 amp breaker is recommended
Oil Requirement	3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight	1,640 LBS.
Adapter Heights	4 Each 2”, 3”, 6”
Arm Hole/Adapter Peg Size	1.5”

Requires a minimum of 4″ of concrete with a 3000 psi. rating
